Because servo motors are inductive, they may run highly dynamic motion profiles. As a result, their current demand can vary widely. Surge currents from stand still to maximum load may be extremely high, yet steady state current demand over time may be relatively mild. Therefore, proper care should be taken when selecting power supplies. Moog Animatics offers linear (unregulated), switch mode (switcher) and shunt supplies, all designed to reliably and safely meet your current and motion performance requirements.



Features include:

  • 42 VDC output power supply is for use with all SmartMotors
  • Primary Side Fused
  • Screw Terminal access to AC input and DC output
  • Available in 110 VAC or 220 VAC input voltage

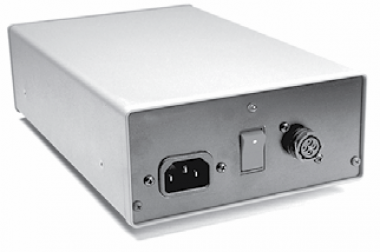

MOOG ANIMATICS POWER SUPPLIES

  •



    Linear

    Switcher

    AC Input

    Field Selectable (120 / 240 VAC)

    Universal 90-240 VAC

    Power Factor
    Corrected

    No

    Yes

    Relative Size

    Big and Bulky

    Lightweight

    Cooling

    Ambient Convection

    Fan Cooled

    Surge Capacity

    400%

    5%

    Voltage
    Regulation

    15% Drop Over Range

    0%, Fixed

    Shunt Required?

    Occasionally, But Not
    Typically

    In Most Cases,
    Highly
    Recommended
