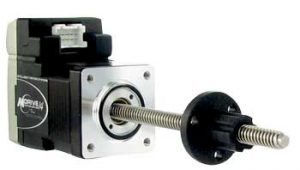

MDrive Plus NEMA size 14 (36 mm) integrated stepper motor linear actuator. This is a Programmale Motion Control with RS422/485 communications interface for programming and control using MCode, a simple mnemonic language for MDrive products.

  • Holding torque range oz-in (N-cm): 18…36 (13 … 25)
  • I/O connector options: Wire Crimp (Standard) Flying Leads, Pluggable (Expanded)
  • Com connector: IDC, Wire Crimp (Expanded)

NEMA 14 Linear Mdrive Programmable

  • Spec

    Notes

    Value

    Holding torque

    oz-in

    N-cm

    18

    13

    Maximum screw misalignment

    °

    ±1



    Non-Captive

    Notes

    Value

    Maximum thrust

    lbs

    kg

    50

    22

    Maximum repeatability

    in

    mm

    0.005

    0.127



    General purpose nut (External)

    Notes

    Value

    Maximum thrust

    lbs

    kg

    25

    11

    Maximum repeatability

    in

    mm

    0.005

    0.127



    Anti-backlash nut (External)

    Notes

    Value

    Maximum thrust

    lbs

    kg

    25

    11

    Maximum repeatability

    In

    mm

    0.0005

    0.0127



    Motor

    Notes

    Value

    Rotor inertia

    oz-in-sec2

    kg-cm2

    0.0003

    0.021

    Weight (motor+driver)

    oz

    g

    8.0

    230.0
