Model 260 Features

  • Low profile 1.19"
  • Up to 12 pole commutation
  • Thru-bore and blind hollow bore styles
  • Simple, innovative flexible mounting system
  • Incorporates Opto-ASIC technology
  • CE marking available

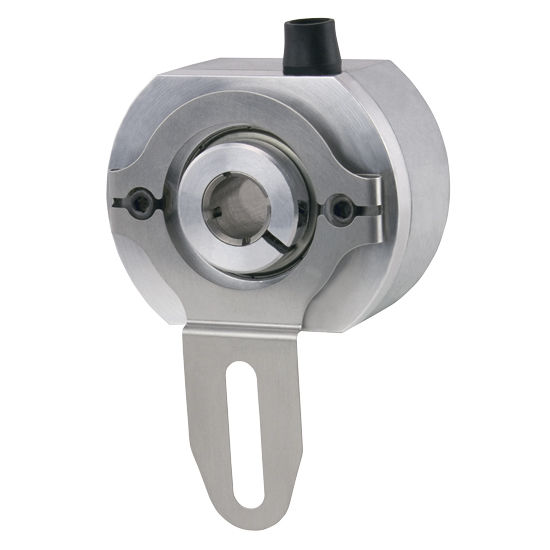

Model 260 Accu-Coder™

  • Model 260 Description

    The Model 260’s larger bore (up to 0.625") and low profile make it the perfect solution for many machine and motor applications. Available in two distinct formats – a blind hollow bore and a complete thru-bore – the Model 260 uses EPC’s pioneering Opto-ASIC design. The Model 260 also uses EPC’s innovative anti-backlash mounting system, allowing simple, reliable, and precise encoder attachment. Unlike traditional kit or modular encoder designs, its integral bearing set provides stable and consistent operation without concerns for axial or radial shaft runout. For brushless servo motor applications, the Model 260 can be specified with three 120° electrical phase tracks to provide up to 12-pole commutation feedback. The optional extended temperature capability allows servo motors to operate at higher power outputs and duty cycles.
