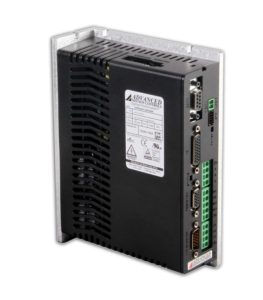

The DPRAHIE-040A400 DigiFlex® Performance™ panel mount servo drive offers full tuning control of all servo loops and is designed for distributed or centralized servo systems. This servo drive utilizes RS485 or Modbus RTU communication and is commissioned with DriveWare® via an RS-232 interface.

DPRAHIE-040A400

CONTROL/COMMAND

±10 V Analog

Step & Direction (24V)

Encoder Following

Indexing

Jogging

Over the Network

PWM and Direction

Sequencing

PRIMARY FEEDBACK

±10 VDC Position

Halls

Incremental Encoder

Tachometer (±10 VDC)

OPERATING MODE

Current

Hall Velocity

Position

Velocity

MOTOR TYPE

Three Phase (Brushless)

Single Phase (Brushed)

AC Induction

Stepper

bottom of page

Current Continuous (A)	20
Current Peak (A)	40
DC Supply Voltage (VDC)	127 - 373
AC Supply Voltage (VAC)	100 - 240
Network Communication	Modbus RTU, RS-485/232
Functional Safety	Safe Torque Off (STO)
Size (mm)	177.50 x 133.53 x 49.20
Weight (g)	1720
